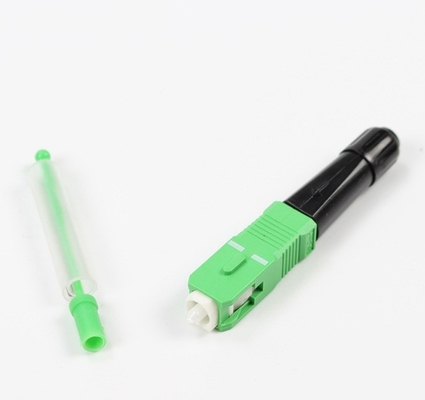

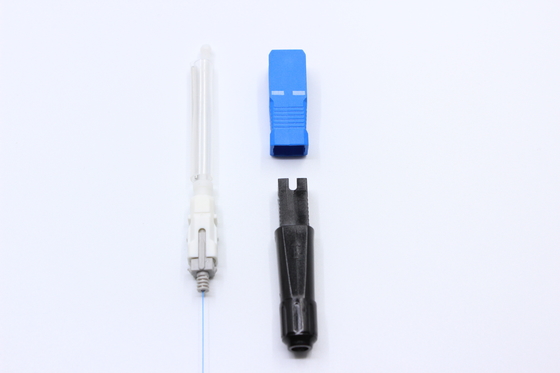

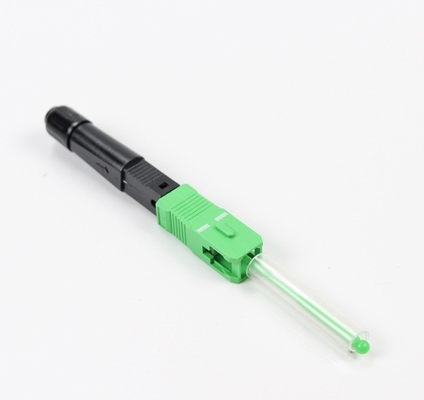

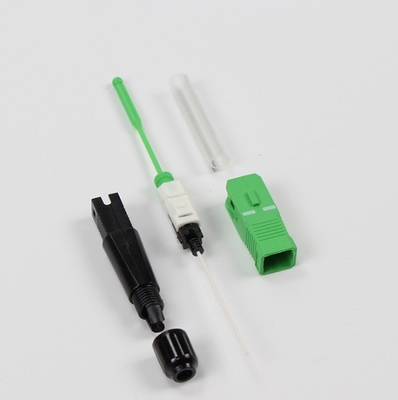

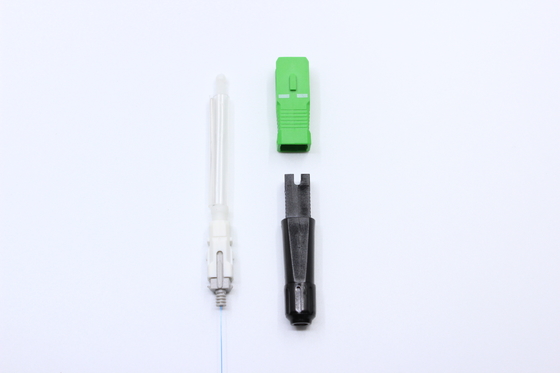

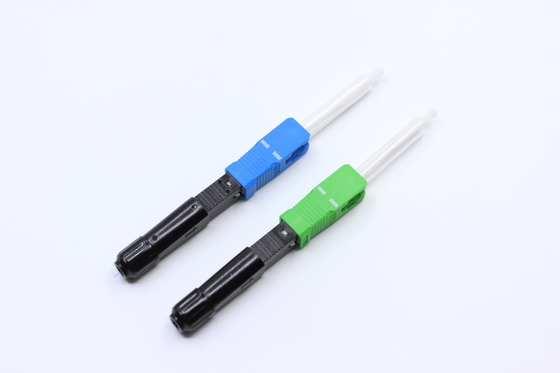

3 SM Single Quick Connection Mode Hot-Melt SC/UPC SC/APC FTTH Fast Connector IL 0.3dB

Large Image : 3 SM Single Quick Connection Mode Hot-Melt SC/UPC SC/APC FTTH Fast Connector IL 0.3dB

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	customize
Certification:	ISO9001
Model Number:	SC APC Fast connector

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	$0.40/pieces >=1000 pieces

Contact Now

3 SM Single Quick Connection Mode Hot-Melt SC/UPC SC/APC FTTH Fast Connector IL 0.3dB

Description

Type:	Fast Connector	Use:	FTTH FTTB FTTX Network, FTTH, FTTH FTTB FTTX Network, FTTH
Warranty Time:	3 Year	Network:	Wireless Lan, Wired LAN, ONVIF, None, Ip, GPRS, Wifi, 4g, 3G
Product Name:	SC APC Fast Connector	Model:	Singlemode Or Multimode
Return Loss:	> 50db	Insertion Loss:	IL<0.3db
Packing:	Plastic Bag	Connector Type:	SC FC LC ST
Function:	Fiber Signal Transmission	Working Temperature:	40-+85

Features:
1.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
2.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation,
easy maintenance.
3.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
4.Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Application:
1. Widely used in FTTH access network.
2.Telecommunication Networks
3.CATV Networks Data communications Networks
4.Local Area Networks

Product name	Fast connector
Product type	Single mode
Insertion loss	Average≤0.5dB,≤0.25dB
Fiber cable	3.1*2.0mm rubber-insulated optical cable,03.0/ 0 2.0 indoor optical cable
Connector type	SC-UPC,SC-APC,FC-UPC,FC-APC
Fiber diameter	0.125mm
Fiber mode	Single mode
Return loss	≥45dB UPC，≥55dB APC
Tensile strength	>3kg

Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
