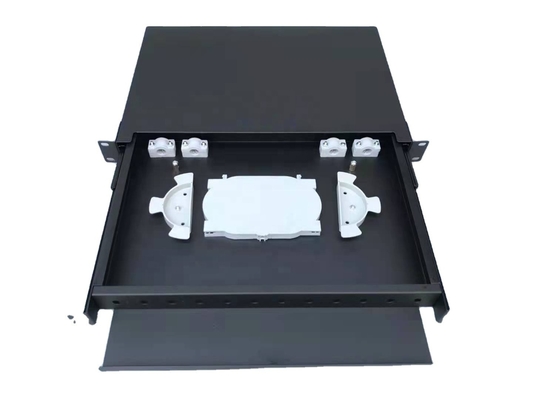

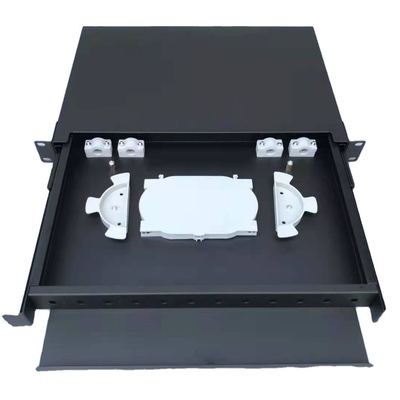

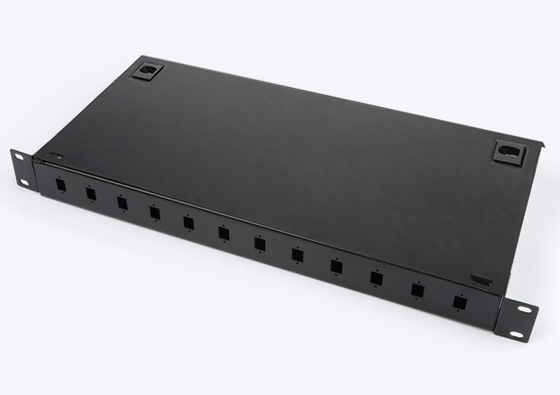

1U SC ftth 12 port fibre optic patch panel for Seamless Fiber Optic Connectivity

Large Image : 1U SC ftth 12 port fibre optic patch panel for Seamless Fiber Optic Connectivity

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	customize
Model Number:	fiber patch panel

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$12.50/pieces >=100 pieces
Packaging Details:	wall mounting small indoor FTTH Terminal Box <br>neutral packing
Supply Ability:	400000 Piece/Pieces per Month

Contact Now

1U SC ftth 12 port fibre optic patch panel for Seamless Fiber Optic Connectivity

Description

Type:	Fiber Optic Patch Panel	Use:	FTTH FTTB FTTX
Warranty Time:	3 Year	Network:	Wireless Lan, None, GPRS, Wifi, 4g, 3G, Wiegand
Product Name:	Fiber Patch Panel	Application:	Telecom Comunication
Fiber Type:	SM/MM/OM3	Color:	Required
Material:	Cold Rolled Plate	Max Capacity:	SC FC ST 24/ LC 48
Ports:	4/8/12/16/20/24	Product Height:	1U
Installation Type:	19 Inch Frame	G. Weight:	2.8KG
Port:	Ningbo Or Shanghai

Description
Fiber optic patch panel ,Fiber optic distribution frame, fiber optic distribution Box, ODF ,fiber optic Indoor wall box, Fiber
optic Outdoor wall box,

Optical Terminal Box (OTB) is mainly used for connecting the indoor/outdoor optical cables, optical patch cords and optical pigtails.

Types
Rack-mount fixed type
Rack-mount drawer type
Rack mount ODF
indoor wall-mount type
Outdoor waterproof wall-mount type

Classification
Rack Mount, Wall Mount. Suitable for FC adapter,ST adapter,SC adapter, LC adapter etc.
capacity: 12,24,32,48,64,72,96 splices
19 inches; 1U for 12 splices, 24 splices,2U installation for 32 splices, 48 splices, and 3U for 64, 72 & 96 splices.
Adapters installed: FC adapter ,ST adapter,SC adapter, LC adapter etc
Suitable for ribbon and bunchy fiber cable

Features and advantages

All components of the box should be made of materials which are of excellent anti-corrosion performance, if not, then it should be static plastic sprayed; the physical and chemical capabilities of the material should be stable and should be compatible.

The melting temperature for the material used for the heat shrinkable protective sleeves and the stuffing should be no less than 120°C, the intenerate temperature should be higher than 90°C, and could be used under -25 - 40°C;
4.2 All material should be innocuous, none-corrosion, no side effects to human being or other equipments.

Features and advantages

Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.
The box are Rack Mounted, which is convenient to install and dismantle;
The splice tray could be piled one upon another, flexible to turn;
The curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray;
The box is of unique structure, reasonable layout, and has adequate room for operation;
Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly;
The indoor type is of excellent seal performance, which could prevent water from entering effectively;

Specification

Product name	Fiber Patch Panel	Connector	\
Product Model	KX-12	Packing Size	43520050 mm
Ports	12	Product Height	1 U
Max Capacity	SC 12/LC 24	Material	Cold rolled plate
Installation Type	19 inch frame	G. weight	1.8kg
Accessories:	1.Ears : 2 pcs. 2.Screws : 8 pcs. 3.Cable tie : 4 pcs .

Product Description

Fiber Optic Splitter

Fiber Optic Adapter

optic fiber patch cords

Company Profile

Company Profile

Ningbo Kehao Hanxing Photoelectric Technology Co., Ltd was founded in 2002, which has been focusing on the field of optical and electrical communications for 20 years.
As the founders, the couple Chen Bo and Reng Chunfei started their own business at the beginning and now the team has 500 members.

1.Factory Direct, Best Price
At the same price, we offer the highest quality products. 2.Delivery Time: 7-10 Days
The company has a large number of stable employees over ten years. To ensure that the delivery time can be guaranteed at any time.
3.High Quality:
IQC-PQC-FQC-OQC.100% qualified. 4.Satisfactory Service:
Special team responsible for after-sales service,Includes installation instructions and technical support.Response within 1
hour,solution within 8 hours, after -sale service

Production Workshop

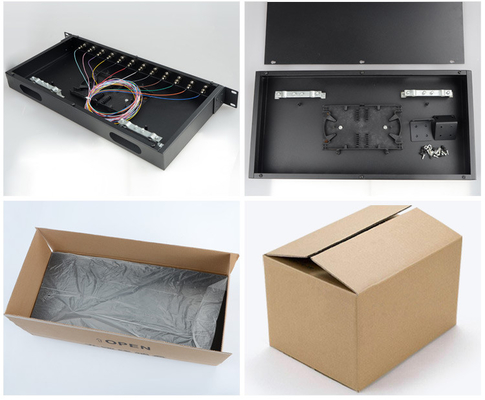

Product packaging

Why Choose Us

Certificate

FAQ

Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
