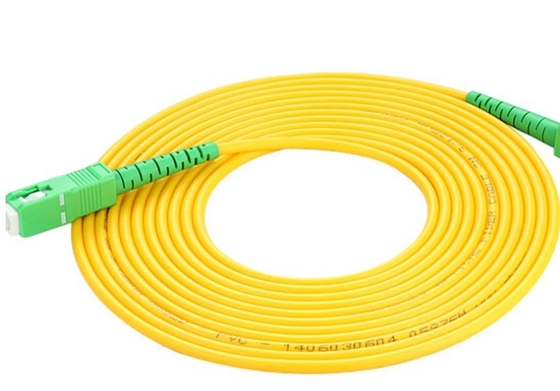

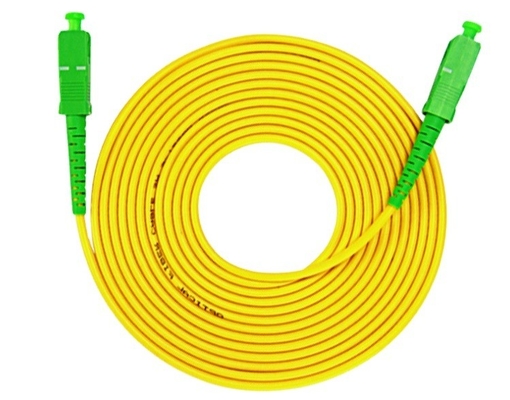

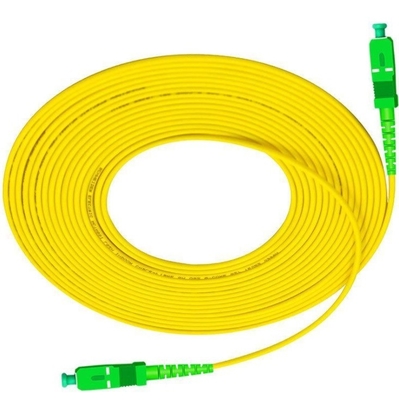

Single Mode G657A SC UPC APC Fiber Optic Patch Cord for Indoor Outdoor FTTH Network

Name: Single Mode G657A SC UPC APC Fiber Optic Patch Cord for Indoor Outdoor FTTH Network
Brand: customize
SKU: fiber optical patch cord
Price: 0.49 USD
Availability: InStock
Rating: 4.7 (175 reviews)

All Products

Fiber Patch Panel
(15)

Fiber Optic Cross Cabinet
(10)

Fiber Optic Fast Connector
(16)

Optic Fiber Cable Joint Enclosure
(7)

FTTH Terminal Box
(39)

Fiber Optic Cable
(2)

Fiber Splice Tray
(3)

Fiber Optic Adapter
(18)

Fiber Optic Patch Cord
(20)

Fiber Optic Splitter
(62)

Others
(5)

I'm Online Chat Now

Single Mode G657A SC UPC APC Fiber Optic Patch Cord for Indoor Outdoor FTTH Network

Large Image : Single Mode G657A SC UPC APC Fiber Optic Patch Cord for Indoor Outdoor FTTH Network

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	customize
Certification:	RoHS
Model Number:	fiber optical patch cord

Payment & Shipping Terms:

Minimum Order Quantity:	200 pieces
Price:	$0.49/pieces >=200 pieces

Contact Now

Single Mode G657A SC UPC APC Fiber Optic Patch Cord for Indoor Outdoor FTTH Network

Description

Type:	Fiber Optic Patch Cord	Use:	Telecommunication, Network
Warranty Time:	3 Year	Network:	Wired LAN, ONVIF, None, Ip, 4g, 3G
Product Name:	Fiber Optical Patch Cord	Connector Type:	SC FC ST LC UPC
Application:	Telecommunication	Package:	Carton Box
Fiber Type:	SM/MM/OM3	Insertion Loss:	≤0.3dB
Return Loss:	≥50dB	Operating Temperature:	-40-70°C

Features:
1-Low insertion loss and high return loss.
2-Good interchangeability and reliability..
Applications:
1-Local area networks, including FTTH and FTTB
2-CATV system
3-Telecommunication networks
4-Data processing networks

Patch Cord information:
1. Ferrule End-face: PC, UPC, APC
2. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
3. Cable Quantity: Simplex or Duplex
4. Cable Diameter: 3.0mm, 2.0mm, 0.9mm
5. Cable Length: 1, 2, 3 meter or customized
6. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum

Specification

Type	SM				MM
Polishing	PC	UPC	APC	PC
Insertion Loss	≤0.3dB	≤0.3dB	≤0.3dB	≤0.3dB
Return Loss	≥50dB	≥55dB	≥60dB	≥35dB
Durability	1000 times
Operating Temperature	-40-70°C
Cable Diameter	0.9mm, 2.0mm, 3.0mm
Cable sheath	PVC or LSZH

Product Description

Fiber Optic Splitter

Fiber Optic Adapter

Fiber Splice Tray

Company Profile

Company Profile

Ningbo Kehao Hanxing Photoelectric Technology Co., Ltd was founded in 2002, which has been focusing on the field of optical and electrical communications for 20 years.
As the founders, the couple Chen Bo and Reng Chunfei started their own business at the beginning and now the team has 500 members.

1.Factory Direct, Best Price
At the same price, we offer the highest quality products. 2.Delivery Time: 7-10 Days
The company has a large number of stable employees over ten years. To ensure that the delivery time can be guaranteed at any time.
3.High Quality:
IQC-PQC-FQC-OQC.100% qualified. 4.Satisfactory Service:
Special team responsible for after-sales service,Includes installation instructions and technical support.Response within 1
hour,solution within 8 hours, after -sale service

Production Workshop

Product packaging

Why Choose Us

Certificate

FAQ

Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
