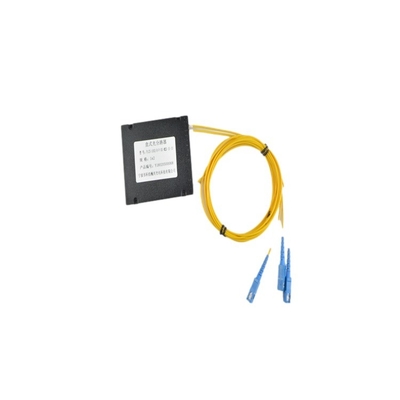

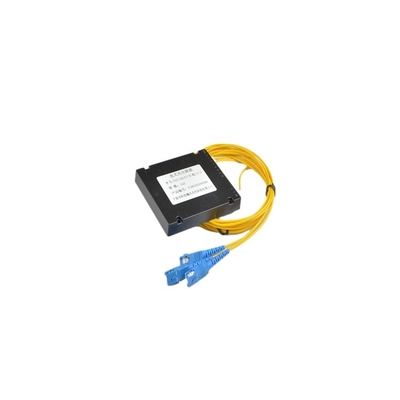

Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB

Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB
Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB

Large Image :  Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB

Product Details:
Place of Origin: Zhejiang, China
Brand Name: customize
Model Number: 1*2 SC UPC box PLC Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $3.50/pieces >=100 pieces
Contact Now

Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB

Description
Type: PLC Splitter Use: ODF, Closure, FAT And FTD, Network
Warranty Time: 3 Year Network: 4g
Product Name: 1*2 SC UPC Box PLC Splitter Application: Telecommunication
Fiber Type: G657A Connector Type: SC FC LC ST
Function: Fiber Signal Transmission Insertion Loss: ≤10.7dB
Operating Wavelength (nm): 1260~1650 Temperature Stability (-40~85 ℃)(dB): 0.5
Directivity (dB): ≥55

Product Description
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Kehao Hanxing provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. The following are our main PLC types:
Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB 0
Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB 1
Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB 2
Mini Type PLC Splitter
Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB 3
Cassette Type PLC Splitter
Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB 4
Rack Mounted Type PLC Splitter
Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB 5
Abs box Type PLC Splitter
Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB 6
Tray AssemblyType PLC Splitter
Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB 7
Other goods
Specification
Parameters
1×2
1×4
1×8
1×16
1×32
1×64
Operating Wavelength (nm)
1260~1650
Fiber Type
G657 or customized
Insertion Loss (dB)
≤4.1
≤7.4
≤10.5
≤13.8
≤17.1
≤20.4
Loss Uniformity (dB)
≤0.8
≤0.8
≤0.8
≤1.0
≤1.5
≤2.0
Return Loss (dB)
≥50
≥50
≥50
≥50
≥50
≥50
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.3
0.4
Directivity (dB)
≥55
≥55
≥55
≥55
≥55
≥55
Temperature Stability (-40~85 ℃)(dB)
0.5
0.5
0.5
0.5
0.5
0.5
Operating Temperature (℃)
-40~85
Storage Temperature (℃)
-40~85
Company Profile
Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB 8
Company Profile
Ningbo Kehao Hanxing Photoelectric Technology Co., Ltd was founded in 2002, which has been focusing on the field of optical and electrical communications for 20 years.
As the founders, the couple Chen Bo and Reng Chunfei started their own business at the beginning and now the team has 500 members.
Our factory is located in Ningbo, Zhejiang, and our new factory has also been put into production, located in the Northeast (Jilin
Province).
The construction area of our factory is about 23,000 square meters, including 8000 square meters in Ningbo Plant and 15,000
square meters in Northeast China.
KX on the fiber optical components, such as PLC splitter, patch cord, adapter, connectors etc. Especially for the PLC spliiter, it
can work in the extremely cold environment. Even in the -50 centigrade degree, like in Russia. KX′s PLC can still help transmit
the optical signal very well, And if you hope to get the 0.1 dB for insert loss on your connectors, which is hard for the regular
production.
Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB 9
Production Workshop
Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB 10
Product packaging
Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB 11
Why Choose Us
Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB 12
Certificate
Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB 13
Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB 14
Directivity dB ≥55 2 Way PLC Splitters 1*2 Box Type Fiber Optical Splitter Insertion Loss ≤10.7dB 15
FAQ
Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
