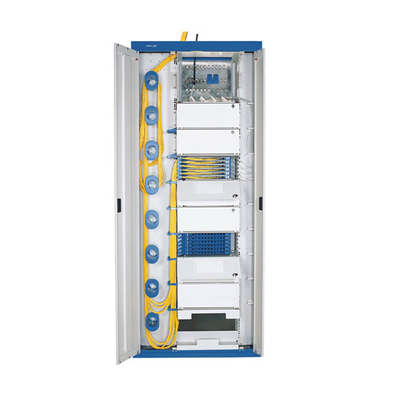

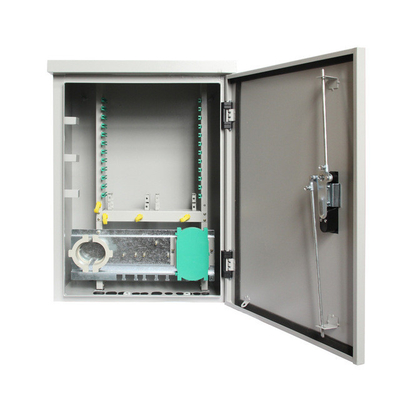

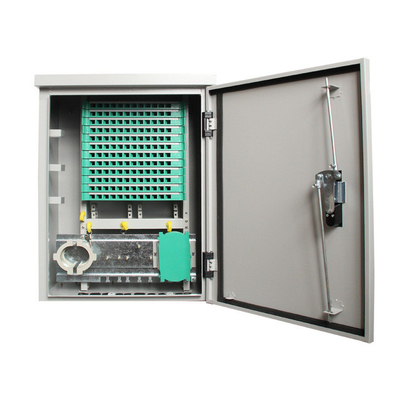

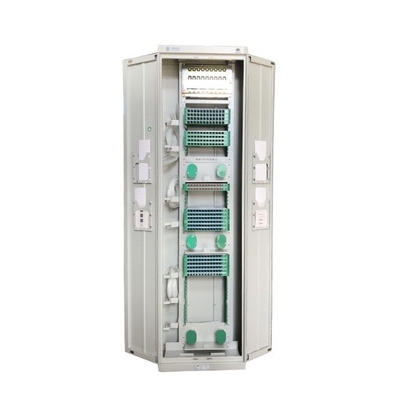

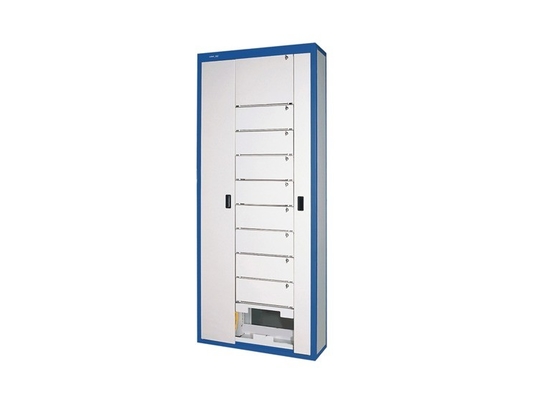

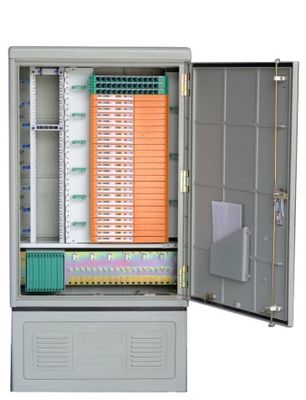

Outdoor Fiber Optic Terminal Box for 96 144 288 Fiber Cable in Cross Connect Cabinet

Large Image : Outdoor Fiber Optic Terminal Box for 96 144 288 Fiber Cable in Cross Connect Cabinet

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	customize
Certification:	Ip65
Model Number:	fiber optic cabinet

Payment & Shipping Terms:

Price:	$225.00/pieces >=1 pieces
Packaging Details:	blister packing >carton box>outer carton box
Supply Ability:	400000 Piece/Pieces per Month

Contact Now

Outdoor Fiber Optic Terminal Box for 96 144 288 Fiber Cable in Cross Connect Cabinet

Description

Type:	Fiber Optic Terminal Box	Use:	FTTX ODB NAP FTTH
Warranty Time:	3 Year	Network:	Wireless Lan, Wired LAN, None, Ip, GPRS, Wifi, 4g, 3G
Product Name:	Fiber Optic Cabinet	Application:	Telecommunication
Material:	Cold-rolled Steel/Stainless Steel/SMC	Dimensions:	1030550310mm
Function:	Distribution Fiber System (FTTH)	Distribution Capacity:	Up To 576 Cores
Size:	Standard/Customized	Keywords:	144 Cores Fiber Optic Cabinet
Reinforced Adapter:	FC/SC/LC	Port:	Ningbo Or Shanghai

Specification:
. Capacity: Up to 1728 Cores
. Dimensions: Variable
. Material: Cold-rolled Steel/Stainless Steel
. Design Style: Splice and Distribution
. Adapter Type: N/A
. Applications: Central Office, FTTX
. Number of Cable Entries & Exits: N/A
. Color: White/Black/Gray/Others
Features:
. Fully-closed structure with the advantages of good performance of dust-proof, pleasing and neat appearance.
. Enough space for fiber distribution and storage space and very easy for installation and operations.
. Fully front side operation, convenient for maintenance.
. Cable inlet system is installed on the top of the frame which has excellent performances for fixing the cables.
. Cables can be inlet either from the top or the bottom of the frame subject to different requirements.
. This frame is suitable for both common bundle cables and ribbon type cables.
. Reliable cable fixture cover and earth protection device provided.
. Integrated splice and distribution unit is adopted. Each unit holds up to 12 FC adapters and up to 24 SC/LC adapters. All units have specially designed slots and can be easily pulled out for operation at any time.
. Fiber separation hook of the splice and distribution module (the hook on the left) can be disassembled to fit for both wide and narrow structure frame.
. Up to 6 units make up a module.
. Work table is provided if one module contains 6 units. Dual SC adapters could double the capacity of Splice and distribution units’ capacities to max 24FO each.
. All adapters are installed 40 degrees inclining to the operation surface which is easier for connecting and also protect
installers’ eyes from the lights.
. No screw needed for installing adapters.
. Curvature radius of 40mm.

Specification

Model	fiber optic cabinet
Customize	We can produce according to you request

Product Description

Main Products

Mini Type PLC Splitter

Cassette Type PLC Splitter

Rack Mounted Type PLC Splitter

Insertion Type PLC Splitter

Tray AssemblyType PLC Splitter

Other goods

Company Profile

Company Profile

Ningbo Kehao Hanxing Photoelectric Technology Co., Ltd was founded in 2002, which has been focusing on the field of optical and electrical communications for 20 years.
As the founders, the couple Chen Bo and Reng Chunfei started their own business at the beginning and now the team has 500 members.

1.Factory Direct, Best Price
At the same price, we offer the highest quality products. 2.Delivery Time: 7-10 Days
The company has a large number of stable employees over ten years. To ensure that the delivery time can be guaranteed at any time.
3.High Quality:
IQC-PQC-FQC-OQC.100% qualified. 4.Satisfactory Service:
Special team responsible for after-sales service,Includes installation instructions and technical support.Response within 1
hour,solution within 8 hours, after -sale service

Production Workshop

Product packaging

Why Choose Us

FAQ

Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
