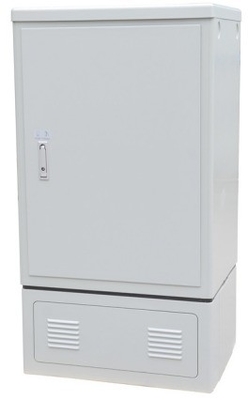

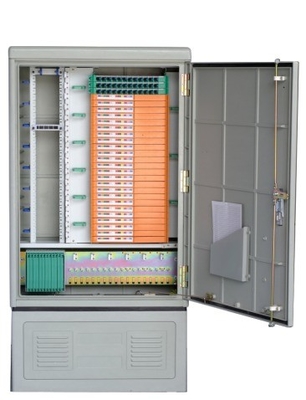

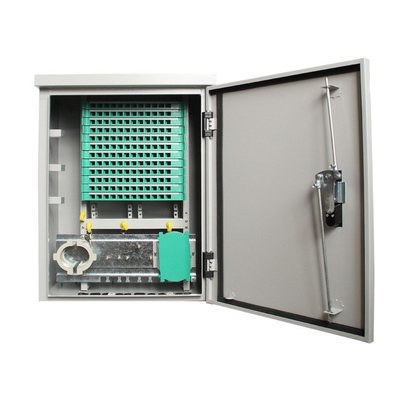

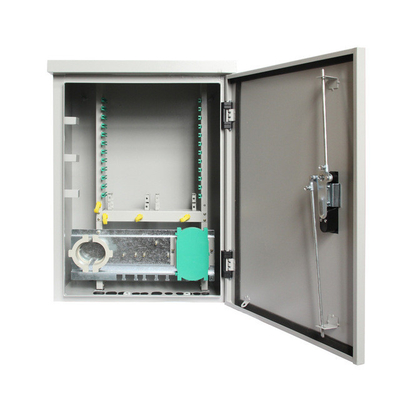

FTTH ODF Outdoor 96 144 288 576 Core Fiber Optic Cross Connect Cabinet Reinforced Adapter

Large Image : FTTH ODF Outdoor 96 144 288 576 Core Fiber Optic Cross Connect Cabinet Reinforced Adapter

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	customize
Certification:	Ip65
Model Number:	288 cores fiber optic cabinet

Payment & Shipping Terms:

Price:	$130.00/pieces 1-49 pieces
Packaging Details:	blister packing >carton box>outer carton box
Supply Ability:	400000 Piece/Pieces per Month

Contact Now

FTTH ODF Outdoor 96 144 288 576 Core Fiber Optic Cross Connect Cabinet Reinforced Adapter

Description

Type:	Fiber Optic Terminal Box	Use:	FTTX ODB NAP FTTH
Warranty Time:	3 Year	Network:	Wireless Lan, Wired LAN, ONVIF, None, Wifi, 4g, 3G
Product Name:	288 Cores Fiber Optic Cabinet	Application:	Telecommunication
Material:	Cold-rolled Steel/Stainless Steel/SMC	Dimensions:	1030550310mm
Function:	Distribution Fiber System (FTTH)	Distribution Capacity:	Up To 576 Cores
Size:	Standard/Customized	Keywords:	144 Cores Fiber Optic Cabinet
Reinforced Adapter:	FC/SC/LC	Port:	Ningbo Or Shanghai

Description:

Specification:
. PLC Splitter Box: Optional of 1*8/1*N
. Distribution capacity: Up to 576 Cores
. Dimensions: Standard/Customized
. Material: Cold-rolled Steel/Stainless Steel/SMC
. Design Style: Front and Front/Back Access
. Adapter Type: FC/SC/LC
. Number of Cable Entries & Exits: Customized
. Color: RAL7035/Customized

Features:
. Maximum accommodate 48 pieces of 1*8/1*N PLC splitter box
. Max. 48 pieces of 12 cores fiber pigtail tray with adapter for backbone and distribution cable
. Protection level reaches IP65
. Modular design, easy installation and removal
. Independent storage and splice area, provides flexible fiber cable management
. Have enough place for 2.0mm 3M pigtail
. Reliable sealing and locking make it waterproof and rust-proof ,mainly used outdoor
. Optional of SMC, stainless steel or cold-rolled steel materials, with surface powder coating
. Preset fiber pigtails installed for rapid deployment

Material	Max Capacity
smc, steel, stainless steel	144Cores,288 cores, 576 cores

Type	SM				MM
Polishing	PC	UPC	APC	PC
Insertion Loss	≤0.3dB	≤0.3dB	≤0.3dB	≤0.3dB
Return Loss	≥50dB	≥55dB	≥60dB	≥35dB
Durability	1000 times
Operating Temperature	-40-70°C
Cable Diameter	0.9mm, 2.0mm, 3.0mm
Cable sheath	PVC or LSZH

Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
