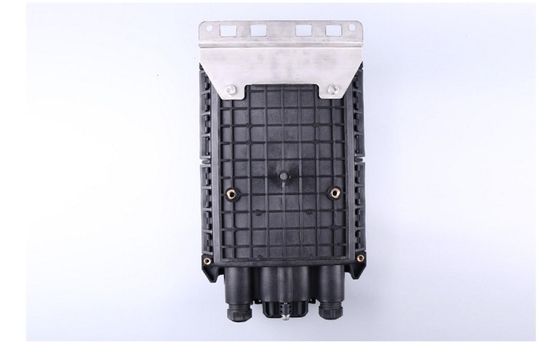

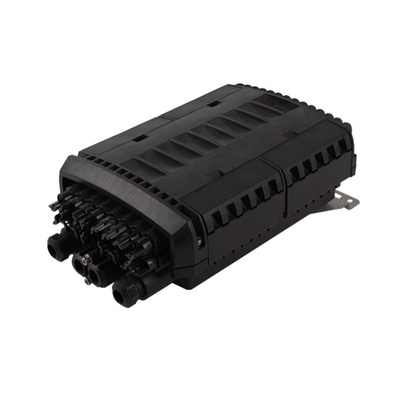

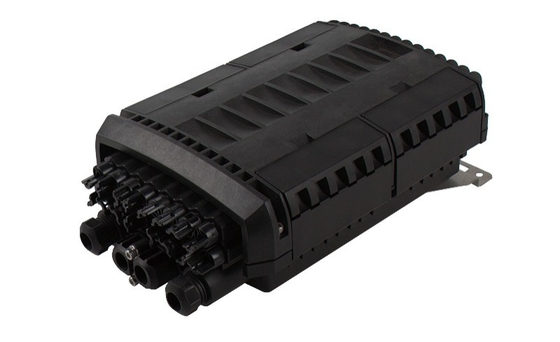

Product Details:
|
| Type: | Fiber Optic Terminal Box | Use: | FTTX ODB NAP FTTH |
|---|---|---|---|
| Warranty Time: | 3 Year | Network: | 4g |
| Product Name: | 16 Cores Distribution Box | Application: | Wall Mount Distribution Use |
| Material: | Premium PC/ABS Material | Dimension (mm): | 385(L)*245(W)*130(H)mm |
| Function: | Distribution Fiber System (FTTH) | Weight: | 2420G |
| Connector Capacity: | 16 Pcs SC Or 32 Pcs LC Connectors | Maximum Install Tray Number: | 1 Splice Tray |
| MOQ: | 20 PCS | Port: | Ningbo Or Shanghai |
Suitable Adapters | SC LC Fiber Adapter |
Material | Premium PC/ABS material |
Weight | 2420G |
Available Cable | Outdoor or Indoor Cable |

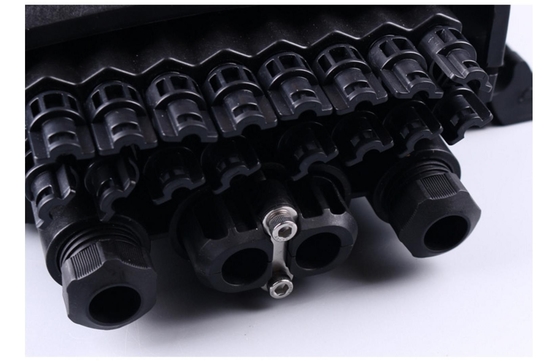

Outlet | 16 Port |
Installation way | Wall Mount |
Dimensions | 385(L)×245(W)×130(H)mm |
Applications | Wall Mountable |
Compatible Riser Cable Types | Yes |
Connector Capacity | 16pcs SC or 32pcs LC connectors |
Connector Type | SC LC |
Drop Cable Connection | Yes |
Includes Splitters | No |
Indoor Outdoor | Both Indoor / Outdoor Cable |
Location | Wall or Pole Usually |
Location of Use | Fiber to the building or FTTH |
Lock Compatible | Screws |
Number of Terminal Drops | 2 Cables |

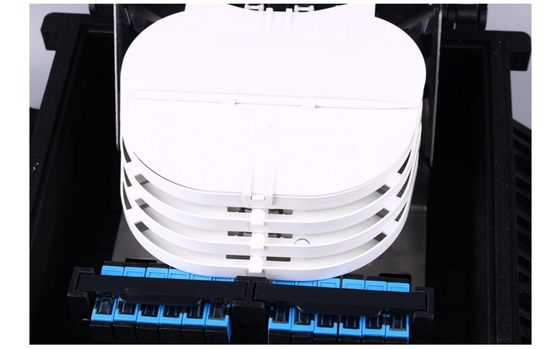

Number of Trays | 1 Splice Tray |
Product Type | Wall fiber distribution |
Solution for | Wall Mount Cabling |
Splice Capacity | 16 fibers |
Splitter Capability | Yes |
Trademark | Teleweaver or Customized |
Lead Time | 5 days for 100pcs, 10 days for 800pcs |
MOQ | 20pcs |
