16 CORES FTTH Fiber Distribution Box for Telecommunication Outdoor Implementation

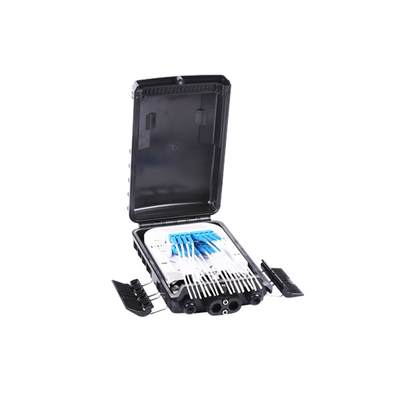

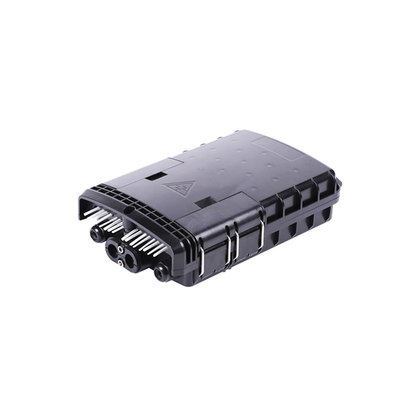

Large Image : 16 CORES FTTH Fiber Distribution Box for Telecommunication Outdoor Implementation

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	customize
Model Number:	16 cores fiber optical Terminal box

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Price:	$6.90/pieces >=50 pieces

Contact Now

16 CORES FTTH Fiber Distribution Box for Telecommunication Outdoor Implementation

Description

Type:	Fiber Optic Terminal Box	Use:	FTTX ODB NAP FTTH
Warranty Time:	3 Year	Network:	Wireless Lan, Bluetooth, Wired LAN, GPRS, Wifi, 4g, 3G, Wiegand
Product Name:	16 Cores Fiber Optical Terminal Box	Application:	Telecommunication
Material:	PC+ABS	Color:	Black
Function:	Distribution Fiber System (FTTH)	Dimensions:	30019085mm
Weight:	1.025 Kg	Max Capacity:	PLC Splitter 2pcs Of 1*8 Steel Tube Type
Keywords:	8 Core Fiber Optical Terminal CTO/NAP Distribution Box	Number Of Adaptor:	16 Pcs SC/UPC Or SC/APC

Description:

This distribution box integrates the splitting and distribution function in one distribution box. So that it can realize the
splicing and branch of the optical cable. The unique design of the box-shaped structure of this box can be used as a fiber
splitting or splice box, it’s easy for future expansion and maintenance. It is suitable for the cable connection of the optical
communication equipment. It can keep internal components. Away from outdoor environmental damage. Its flexible configuration supports 1 mid- span cable entrance(10-16.5mm) for uncut cable and 2 cable entrances for distribution cable gland(8-13.5mm). Good performance is useful in harsh environment. Steel tube type splitter can be installed as option. 16 pcs of pre-installed reinforced water-proof adapter for SC. Through the adapters, the signal is drawn by the optical fiber jumper to realize the optical fiber distribution function. Also suitable for fiber cable and pigtails protective connection.

Features:
• Water-proof design with IP-65 Protection level.
• Outdoor application and good UV resistance
• Integrated with splice trays and two-steps splitter cassettes.
•Stainless anti-rust bolts and nuts. Easy for maintenance and expansion, neat cabling
• Fiber bend radius control more than 40mm.
• 180 degree access with buckled lock structure.
• 16 pcs of pre-installed reinforced water-proof adapter for SC.
• 1 mid- span cable entrance(10-16.5mm) for uncut cable and 2 cable entrances for distribution cable gland(8-13.5mm).

Specification

Max Capacity	PLC Splitter 2pcs of 1×8 Steel tube Type
Number of Adaptor	16 pcs SC/UPC or SC/APC
Material	ABS+PC
Dimension L×W×H(mm)	300×190×85mm
Weight (g)	1025g
Color	Black

Product Description

Main Products

Mini Type PLC Splitter

Cassette Type PLC Splitter

Rack Mounted Type PLC Splitter

Insertion Type PLC Splitter

Tray AssemblyType PLC Splitter

Other goods

Company Profile

Company Profile

Ningbo Kehao Hanxing Photoelectric Technology Co., Ltd was founded in 2002, which has been focusing on the field of optical and electrical communications for 20 years.
As the founders, the couple Chen Bo and Reng Chunfei started their own business at the beginning and now the team has 500 members.

1.Factory Direct, Best Price
At the same price, we offer the highest quality products. 2.Delivery Time: 7-10 Days
The company has a large number of stable employees over ten years. To ensure that the delivery time can be guaranteed at any time.
3.High Quality:
IQC-PQC-FQC-OQC.100% qualified. 4.Satisfactory Service:
Special team responsible for after-sales service,Includes installation instructions and technical support.Response within 1
hour,solution within 8 hours, after -sale service

Production Workshop

Product packaging

Why Choose Us

FAQ

Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
