Mini PLC Splitter Fiber Distribution Box 32/48 Core ABS NAP IP68 2PCS 1X16 or 48 Adaptor

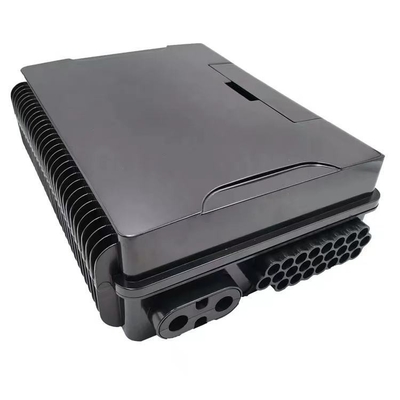

Large Image : Mini PLC Splitter Fiber Distribution Box 32/48 Core ABS NAP IP68 2PCS 1X16 or 48 Adaptor

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	customize
Model Number:	32/48 cores fiber optic distribution box

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Price:	$6.90/pieces >=50 pieces
Packaging Details:	blister packing >carton box>outer carton box
Supply Ability:	400000 Piece/Pieces per Month

Contact Now

Mini PLC Splitter Fiber Distribution Box 32/48 Core ABS NAP IP68 2PCS 1X16 or 48 Adaptor

Description

Type:	Fiber Optic Terminal Box	Use:	FTTX ODB NAP FTTH
Warranty Time:	3 Year	Network:	Wireless Lan, Wired LAN, None, GPRS, Wifi, 4g
Product Name:	32/48 Cores Fiber Optic Distribution Box	Application:	Telecommunication
Material:	ABS	Dimensions:	340X260X110mm
Function:	Distribution Fiber System (FTTH)	Color:	BLACK
Weight:	1.505kg	Max Capacity:	32/48 CORES
Keywords:	32/48 Cores Fiber Optic Distribution Box	Splitter Type:	Mini Plc Splitter, Cassette Splitter
Port:	Ningbo Or Shanghai

Description:

This product integrates the splitting and distribution function in one distribution box. So that it can realize the splicing and
branch of the optical cable. The unique design of the box-shaped structure of this box can be used as a fiber splitting or splice box, and the 3 layers structure, easy for future expansion and maintenance. It is suitable for the cable connection of the optical communication equipment. And this product is for aerial stand-mounts FTTH drop location where drop cables are spliced to distribution cables. It can keep internal components. Away from outdoor environmental damage. Its flexible configuration supports 3 cables in and 3 cables out. Good performance is useful in harsh environment. 16 pcs of adapters can be installed, and through the adapters of the distribution box, the signal is drawn by the optical fiber jumper to realize the optical fiber distribution function. Also suitable for fiber cable and pigtails protective connection.

Features

• The closure casing is made of industrial plastic PP
• Outdoor application and good UV resistance
• Double sided drop cable outlets drop, cable can lead in at both sides, easy to deploy
• 6 cable ports entrance, 2 for feeder cable (8-20mm) and 4 for branching cable(5-16mm)
• 3 layers structure, easy for futur expansion and maintenance
• Fiber bend radius control more than 40mm.
• 180 degree access with buckled lock structure.
• Protection grade IP-65
• 16 pcs adapters for SC.
• The application on NAP in the distributed split PON architecture

Specification

Product Name					32/48 Core Fiber Optic Distribution Box
Size（mm）					340X260X110mm
The material					ABS
Ports					2 inlet 48 outlet
Adapter Capacity					Matching 1*16 LGX SPLITTER / 48PCS SC ADAPTOR
Specifications（No. of Fiber）					32/48 Core
The net weight（kg）					2.5kg
