Product Details:
|
| Type: | PLC Splitter | Use: | ODF, Closure, FAT And FTD, Network |
|---|---|---|---|
| Warranty Time: | 3 Year | Network: | 4g |

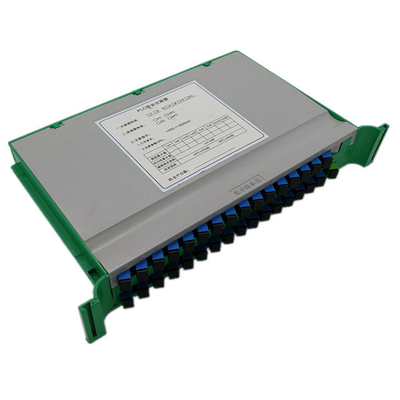

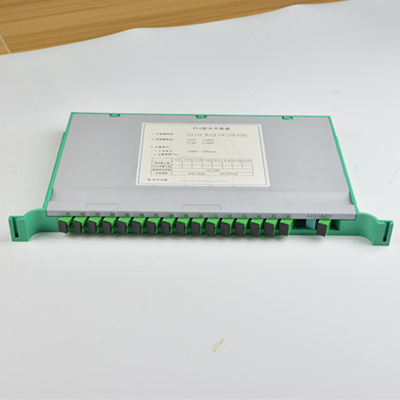

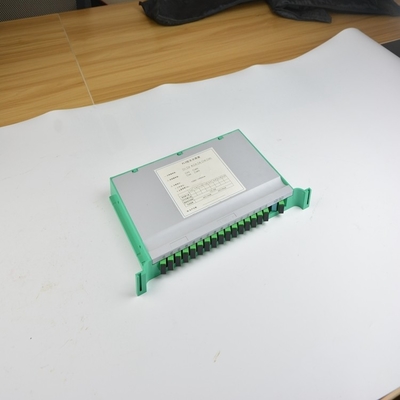

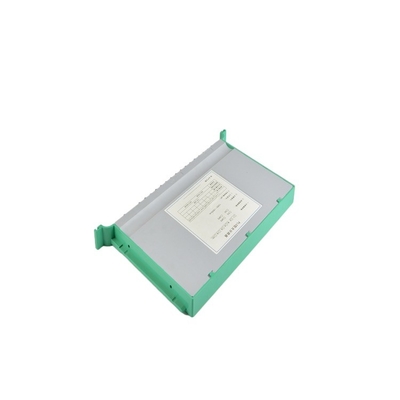

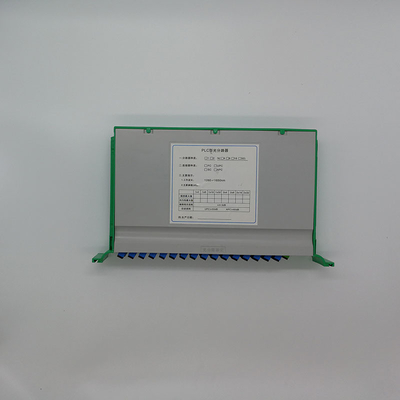

| Product Name: | 1*32 Tray Assembly PLC Splitter | Application: | Telecommunication |
| Fiber Type: | G657A | Connector Type: | SC FC LC ST |
| Function: | Fiber Signal Transmission | Insertion Loss: | ≤10.7dB |
| Operating Wavelength (nm): | 1260~1650 | Temperature Stability (-40~85 ℃)(dB): | 0.5 |
| Directivity (dB): | ≥55 | Port: | Ningbo Or Shanghai |
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |||||
Operating Wavelength (nm) | 1260~1650 | ||||||||||
Fiber Type | G657 or customized | ||||||||||
Insertion Loss (dB) | ≤4.1 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.1 | ≤20.4 | |||||
Loss Uniformity (dB) | ≤0.8 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | |||||
Return Loss (dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | |||||
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |||||
Directivity (dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | |||||
Temperature Stability (-40~85 ℃)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |||||
Operating Temperature (℃) | -40~85 | ||||||||||
Storage Temperature (℃) | -40~85 | ||||||||||
