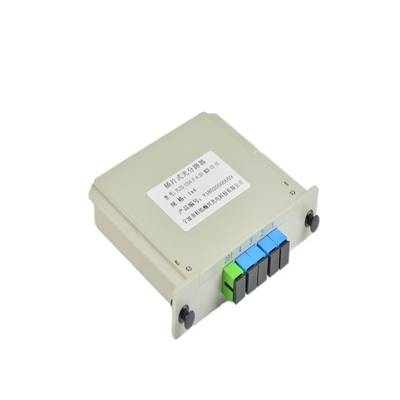

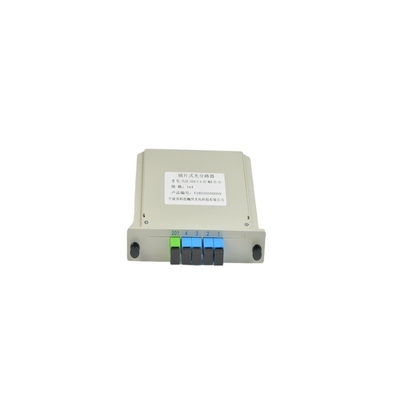

Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type

Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type

Large Image :  Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type

Product Details:
Place of Origin: Zhejiang, China
Brand Name: customize
Certification: RoHS, ISO9001
Model Number: 1*4 SCUPC PLC Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $3.50/pieces >=100 pieces
Packaging Details: blister packing >carton box>outer carton box
Supply Ability: 400000 Piece/Pieces per Month
Contact Now

Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type

Description
Type: PLC Splitter Use: ODF, Closure, FAT And FTD, Network
Warranty Time: 3 Year Network: 4g
Product Name: 1*4 SCUPC PLC Splitter Application: Telecommunication
Fiber Type: G657A Connector Type: SC FC LC ST
Function: Fiber Signal Transmission Insertion Loss: ≤10.7dB
Operating Wavelength (nm): 1260~1650 Temperature Stability (-40~85 ℃)(dB): 0.5
Directivity (dB): ≥55 Port: Ningbo Or Shanghai

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Kehao Hanxing provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. The following are our main PLC types:
Specification
Parameters
1×2
1×4
1×8
1×16
1×32
1×64
Operating Wavelength (nm)
1260~1650
Fiber Type
G657 or customized
Insertion Loss (dB)
≤4.1
≤7.4
≤10.5
≤13.8
≤17.1
≤20.4
Loss Uniformity (dB)
≤0.8
≤0.8
≤0.8
≤1.0
≤1.5
≤2.0
Return Loss (dB)
≥50
≥50
≥50
≥50
≥50
≥50
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.3
0.4
Directivity (dB)
≥55
≥55
≥55
≥55
≥55
≥55
Temperature Stability (-40~85 ℃)(dB)
0.5
0.5
0.5
0.5
0.5
0.5
Operating Temperature (℃)
-40~85
Storage Temperature (℃)
-40~85
Product Description
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 0
Ordering information
X
X
X
X
X
X
X
Connector
Polish
Port
Package
Fiber Type
Fiber Diameter
Cable Length
0=LC
1=SC
2=FC
3=ST
S=specify
1=UPC
2=APC
12=1*2
14=1*4
18=1*8
.....
1128=1*128
22=2*2
24=2*4
28=2*8
......
2128=2*128
1=Mini Type
2=Cassette Type
3=ABS box module
4=Tray Assembly Type
5=Rack mount
S=specify
1=SM 9/125
2=MM 50/125
3=MM 62.5/125
S=specify
0=250μm
1=900μm
2=2.0mm
3=3.0mm
S=Specify
0=0.5m
1=1m
2=2m
3=3m
S=Specify
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 1
Mini Type PLC Splitter
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 2
Cassette Type PLC Splitter
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 3
Rack Mounted Type PLC Splitter
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 4
Insertion Type PLC Splitter
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 5
Tray AssemblyType PLC Splitter
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 6
Other goods
Producion Process
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 7
Company Profile
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 8
Company Profile
Ningbo Kehao Hanxing Photoelectric Technology Co., Ltd was founded in 2002, which has been focusing on the field of optical and electrical communications for 20 years.
As the founders, the couple Chen Bo and Reng Chunfei started their own business at the beginning and now the team has 500 members.
1.Factory Direct, Best Price
At the same price, we offer the highest quality products. 2.Delivery Time: 7-10 Days
The company has a large number of stable employees over ten years. To ensure that the delivery time can be guaranteed at any time.
3.High Quality:
IQC-PQC-FQC-OQC.100% qualified. 4.Satisfactory Service:
Special team responsible for after-sales service,Includes installation instructions and technical support.Response within 1
hour,solution within 8 hours, after -sale service
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 9
Production Workshop
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 10
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 11
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 12
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 13
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 14
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 15
Why Choose Us
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 16
Certificate
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 17
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 18
Temperature Stability Low PDL Fiber Cassette Module 1*4 with SC FC LC ST Connector Type 19
FAQ
Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
