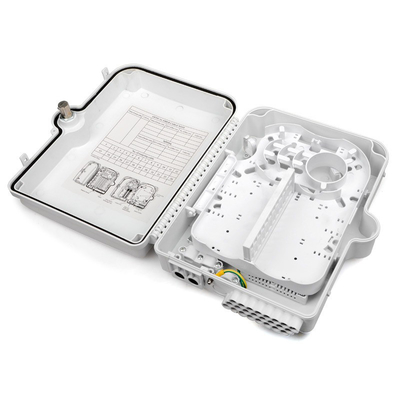

Fiber Optic Terminal Box 24 Port FTTH Distribution Box for Fast Network Connection

Large Image : Fiber Optic Terminal Box 24 Port FTTH Distribution Box for Fast Network Connection

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	customize
Certification:	Ip65
Model Number:	24 cores fiber optic distribution box

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Price:	$6.90/pieces >=50 pieces
Packaging Details:	blister packing >carton box>outer carton box
Supply Ability:	400000 Piece/Pieces per Month

Contact Now

Fiber Optic Terminal Box 24 Port FTTH Distribution Box for Fast Network Connection

Description

Type:	Fiber Optic Terminal Box	Use:	FTTX ODB NAP FTTH
Warranty Time:	3 Year	Network:	None, Wifi, 4g, 3G
Product Name:	24 Cores Fiber Optic Distribution Box	Application:	Telecommunication
Material:	PC+ABS	Dimensions:	345210100
Function:	Distribution Fiber System (FTTH)	Weight:	1.665kg
Max Capacity:	Splice 96 Fibers, Splitter 3pcs Of 1x8(SC) Steel Tube Type	Keywords:	24 Cores Fiber Optic Distribution Box
Reinforced Adapter:	24pcs SC/UPC Or SC/APC	Port:	Ningbo Or Shanghai

Description:

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

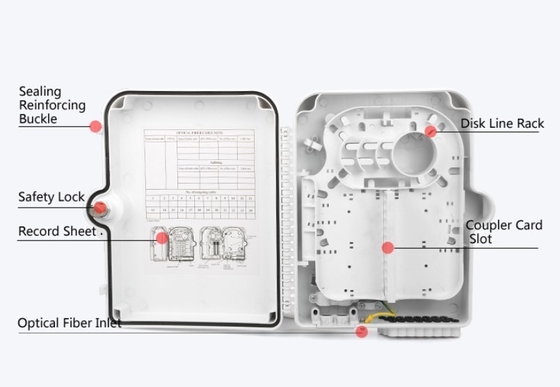

Features
1. Total enclosed structure.
2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

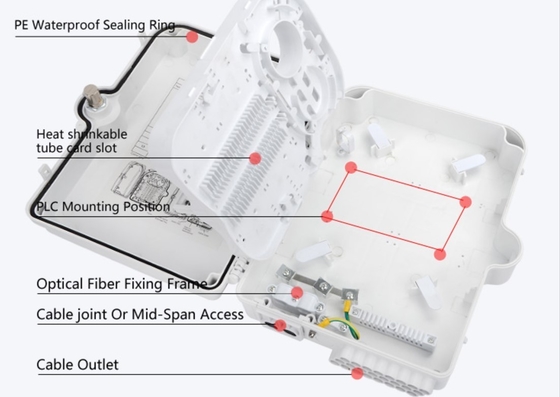

4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

Specification
1. Environmental requirement
Working temperature: -40ºC~+85ºC
Relative humidity: ≤85% (+30ºC)
Atmospheric pressure: 70KPa~106Kpa
2. Main technical datasheet
Insertion loss: ≤0.3dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
3. Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2MΩ/500V (DC); IR≥2MΩ/500V.
The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture,
no flashover; U≥3000V

Specification

Product name	Fiber Optic Distribution Box	IP Rate	IP55
Product Model	12B	Product Size	24522065 mm
Ports	2 inlet port φ12.5mm 12 out port φ5.5/11mm	Packing Quantity	20 pcs / carton 475237cm 14kg
Compatible with	1:8 cassette splitter or 12 core adapter pigtail	Material	PC ABS
Installation Type	Wall / pole-mounted	Net weight	0.8 kg

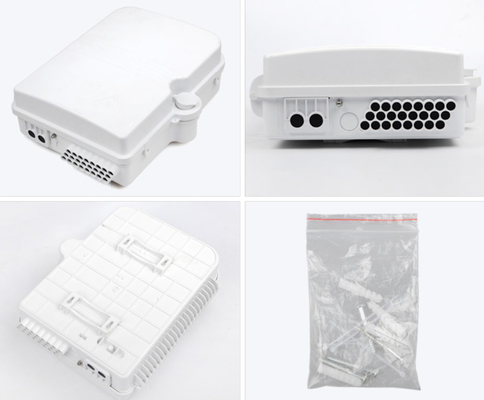

Accessories	1. Wall mounting kits : 4 pieces 2. Screws : 4 pieces 3. Cable tie: 4 pieces 4. Key :1 piece

Product Description

Main Products

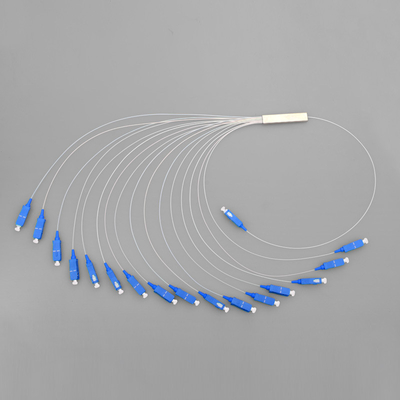

Mini Type PLC Splitter

Cassette Type PLC Splitter

Rack Mounted Type PLC Splitter

Insertion Type PLC Splitter

Tray AssemblyType PLC Splitter

Other goods

Company Profile

Company Profile

Ningbo Kehao Hanxing Photoelectric Technology Co., Ltd was founded in 2002, which has been focusing on the field of optical and electrical communications for 20 years.
As the founders, the couple Chen Bo and Reng Chunfei started their own business at the beginning and now the team has 500 members.

1.Factory Direct, Best Price
At the same price, we offer the highest quality products. 2.Delivery Time: 7-10 Days
The company has a large number of stable employees over ten years. To ensure that the delivery time can be guaranteed at any time.
3.High Quality:
IQC-PQC-FQC-OQC.100% qualified. 4.Satisfactory Service:
Special team responsible for after-sales service,Includes installation instructions and technical support.Response within 1
hour,solution within 8 hours, after -sale service

Production Workshop

Product packaging

Why Choose Us

FAQ

Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
