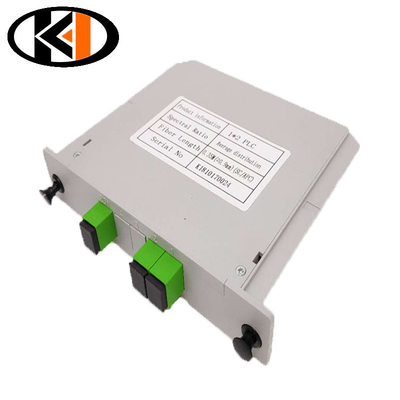

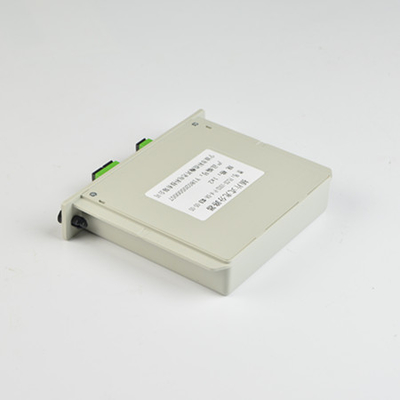

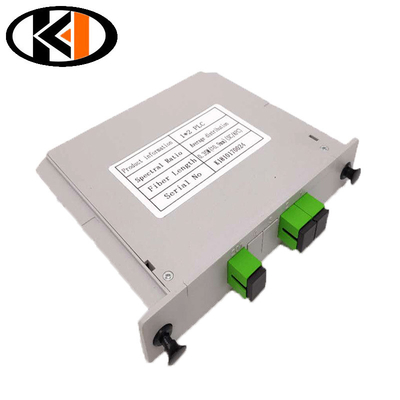

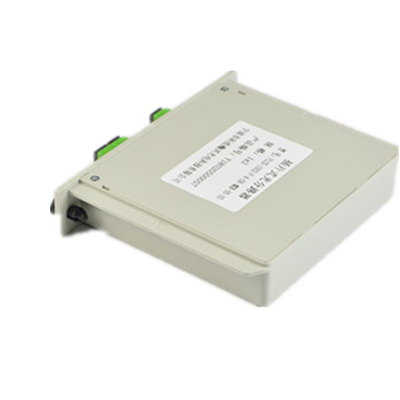

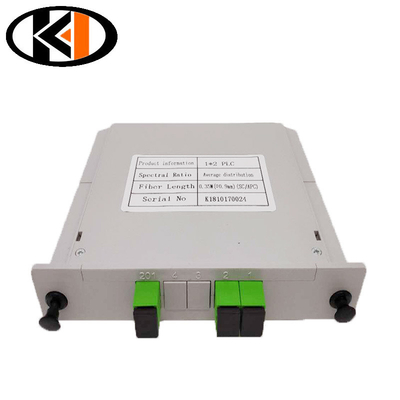

ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers

ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers

Large Image :  ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers

Product Details:
Place of Origin: Zhejiang, China
Brand Name: customize
Model Number: Fiber Optic Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $0.90 - $12.00/pieces
Packaging Details: blister packing >carton box>outer carton box
Supply Ability: 400000 Piece/Pieces per Month
Contact Now

ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers

Description
Type: Fiber Optic Splitter Use: ODF, Closure, FAT And FTD, FTTX
Warranty Time: 3 Years Network: Wireless Lan, Bluetooth, Wired LAN, GPRS, Wifi, 4g, 3G, Wiegand
Product Name: Fiber Optic Splitter Connector: FC ST LC SC
Insertion Loss: ≤10.7dB No. Of Fiber: 2/4/6/8/16/32/64
Fiber Type: G657 Or Customized Wavelength: 1260~1650nm
Polarization Dependent Loss(dB): 0.2 Return Loss (dB): ≥50
Loss Uniformity (dB): ≤0.8 Port: Ningbo Or Shanghai Of Fiber Optic Splitter

Product Description
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 0
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Kehao Hanxing provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. The following are our main PLC types:
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 1
Mini Type PLC Splitter
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 2

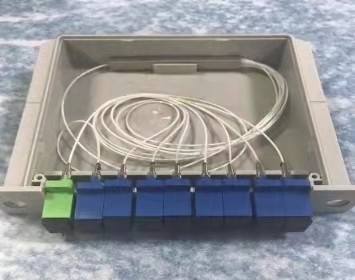

Cassette Type PLC Splitter
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 3
Rack Mounted Type PLC Splitter
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 4
Insertion Type PLC Splitter
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 5
Tray AssemblyType PLC Splitter
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 6
Other goods
Specification
Connector type
FC, SC, LC, ST, MU, E2000, D4, DIN
Fiber Mode
SM
MM
End face
PC
UPC
APC
PC
IL(dB)
≤0.3
≤0.2
≤0.3
≤0.3
RL(dB)
≥45
≥50
≥60
≥35
Other model
MT-RJ, MPO
IL(dB)
≤0.7
/
≤0.7
≤0.5
RL(dB)
≥30
/
≥50
≥25
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 7
Company Profile
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 8
Company Profile
Ningbo Kehao Hanxing Photoelectric Technology Co., Ltd was founded in 2002, which has been focusing on the field of optical and electrical communications for 20 years.
As the founders, the couple Chen Bo and Reng Chunfei started their own business at the beginning and now the team has 500 members.
1.Factory Direct, Best Price
At the same price, we offer the highest quality products. 2.Delivery Time: 7-10 Days
The company has a large number of stable employees over ten years. To ensure that the delivery time can be guaranteed at any time.
3.High Quality:
IQC-PQC-FQC-OQC.100% qualified. 4.Satisfactory Service:
Special team responsible for after-sales service,Includes installation instructions and technical support.Response within 1
hour,solution within 8 hours, after -sale service
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 9
Production Workshop
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 10
Product packaging
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 11
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 12
Why Choose Us
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 13
Certificate
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 14
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 15
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 16
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 17
FAQ
Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
ODF 1-2 Fiber SC APC Plug-in Cassette PLC Splitter 1-2 with 2/4/6/8/16/32/64 Fibers 18

Contact Details
Ningbo Kehao Hanxing Photoelectric Technology Co., Ltd.

Contact Person: Mr. Ren

Tel: 15267877797
