16 SC 1/16 PLC Fibre Distribution Box Accommodating Outdoor Fiber Optic Connection

Large Image : 16 SC 1/16 PLC Fibre Distribution Box Accommodating Outdoor Fiber Optic Connection

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	customize
Certification:	Ip68/Ios9001
Model Number:	16 cores Distribution Box

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$6.80/pieces 100-499 pieces
Packaging Details:	blister packing >carton box>outer carton box
Supply Ability:	400000 Piece/Pieces per Month

Contact Now

16 SC 1/16 PLC Fibre Distribution Box Accommodating Outdoor Fiber Optic Connection

Description

Type:	Fiber Optic Terminal Box	Use:	FTTX ODB NAP FTTH
Warranty Time:	3 Year	Network:	Wireless Lan, None, Ip, GPRS, Wifi, 4g, 3G, Wiegand
Product Name:	16 Cores Distribution Box	Application:	Wall Mount Distribution Use
Material:	Premium PC/ABS Material	Dimension (mm):	385(L)245(W)130(H)mm
Function:	Distribution Fiber System (FTTH)	Weight:	2420G
Connector Capacity:	16 Pcs SC Or 32 Pcs LC Connectors	Maximum Install Tray Number:	1 Splice Tray
MOQ:	20 PCS	Port:	Ningbo Or Shanghai

16 ports Outdoor Waterproof Wall Mountable FTTH Fiber Splitter & Cable Distribution Box

Unload or Preloaded with 1:16 PLC fiber splitter with SC/UPC, SC/APC fiber adapters

* Free Waterproof type Fiber Distribution Box Sample
* Made of Premium Grade Flame Resistant Material
* Suitable to SC/UPC or SC/APC Fiber Adapters & Pigtails
* Reasonable Bending Radius for Fiber Protection
* Can be used with Waterproof Adapter for Fast Connection
* Allow outdoor cable splitting fusion
* IP68 Waterproof grade

Basic Information

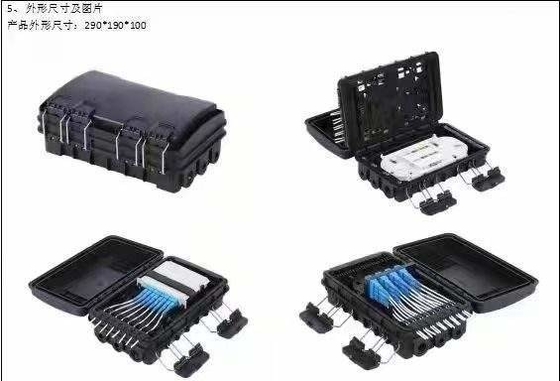

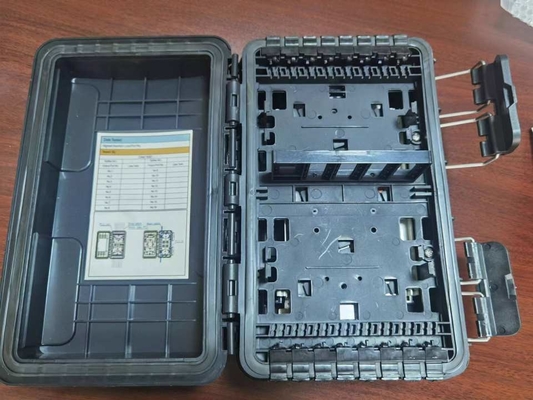

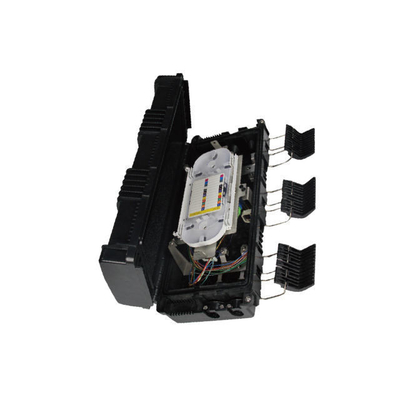

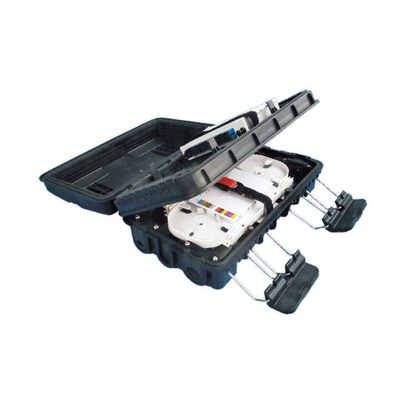

16 ports Outdoor Waterproof Wall Mountable FTTH Fiber Splitter or Cable Distribution Box is designed for wall mounted or pole mountable.It has 4 splice trays for managing the fiber pigtails. The material is of PC/ABS alloy.

Item			Unit	Data
Range of application			--	FTTH fiber to home or others
Configuration			--	1*16 MINITUBE SPLITTER
Product Size			mm
Product Weight			kg
Working Temperature	Indoor	℃	－25～+55
	Outdoor	℃	－40～+60

Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
