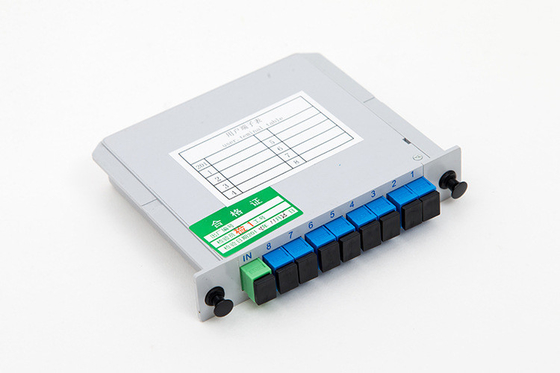

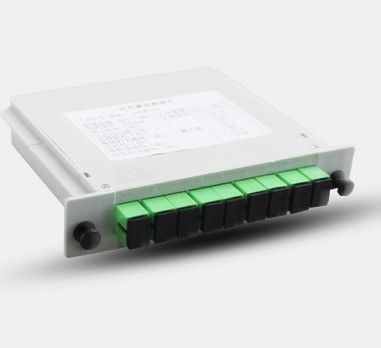

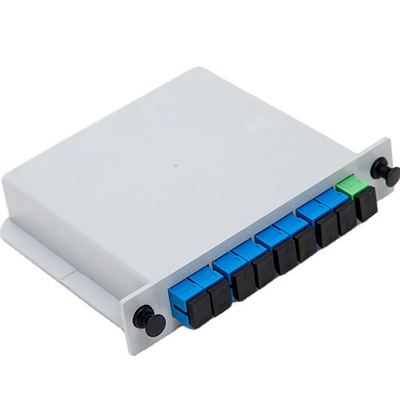

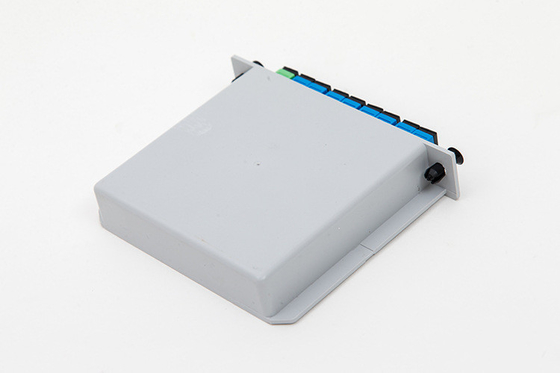

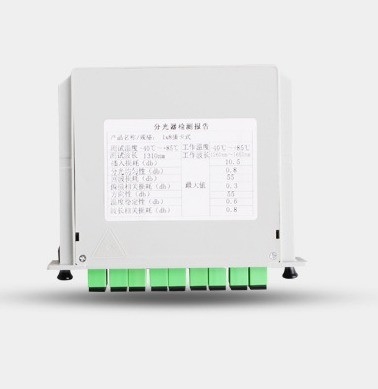

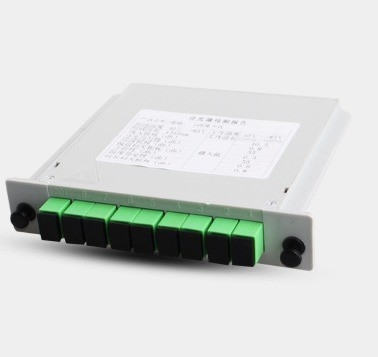

1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable

1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable

Large Image :  1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable

Product Details:
Place of Origin: Zhejiang, China
Brand Name: customize
Model Number: 1*8 sc Apc PLC Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $3.50/pieces >=100 pieces
Packaging Details: blister packing >carton box>outer carton box
Supply Ability: 400000 Piece/Pieces per Month
Contact Now

1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable

Description
Type: PLC Splitter Use: ODF, Closure, FAT And FTD, Network
Warranty Time: 3 Year Network: Wireless Lan, Bluetooth, ONVIF, None, Ip, POE, GPRS, Wifi, 4g, 3G, Wiegand
Product Name: 1*8 Sc Apc PLC Splitter Application: Telecommunication
Fiber Type: G657A Connector Type: SC FC LC ST
Function: Fiber Signal Transmission Insertion Loss: ≤10.7dB
Operating Wavelength (nm): 1260~1650 Temperature Stability (-40~85 ℃)(dB): 0.5
Directivity (dB): ≥55 Port: Ningbo Or Shanghai

Product Description
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 0
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 1
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Kehao Hanxing provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. The following are our main PLC types:
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 2
Mini Type PLC Splitter
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 3
Cassette Type PLC Splitter
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 4
Rack Mounted Type PLC Splitter
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 5
Insertion Type PLC Splitter
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 6
Tray AssemblyType PLC Splitter
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 7
Other goods
Specification
Parameters
1×2
1×4
1×8
1×16
1×32
1×64
Operating Wavelength (nm)
1260~1650
Fiber Type
G657 or customized
Insertion Loss (dB)
≤4.1
≤7.4
≤10.5
≤13.8
≤17.1
≤20.4
Loss Uniformity (dB)
≤0.8
≤0.8
≤0.8
≤1.0
≤1.5
≤2.0
Return Loss (dB)
≥50
≥50
≥50
≥50
≥50
≥50
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.3
0.4
Directivity (dB)
≥55
≥55
≥55
≥55
≥55
≥55
Temperature Stability (-40~85 ℃)(dB)
0.5
0.5
0.5
0.5
0.5
0.5
Operating Temperature (℃)
-40~85
Storage Temperature (℃)
-40~85
Main Products
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 8
Company Profile
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 9
Company Profile
Ningbo Kehao Hanxing Photoelectric Technology Co., Ltd was founded in 2002, which has been focusing on the field of optical and electrical communications for 20 years.
As the founders, the couple Chen Bo and Reng Chunfei started their own business at the beginning and now the team has 500 members.
1.Factory Direct, Best Price
At the same price, we offer the highest quality products. 2.Delivery Time: 7-10 Days
The company has a large number of stable employees over ten years. To ensure that the delivery time can be guaranteed at any time.
3.High Quality:
IQC-PQC-FQC-OQC.100% qualified. 4.Satisfactory Service:
Special team responsible for after-sales service,Includes installation instructions and technical support.Response within 1
hour,solution within 8 hours, after -sale service
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 10
Production Workshop
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 11
Product packaging
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 12
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 13
Why Choose Us
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 14
Certificate
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 15
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 16
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 17
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 18
FAQ
Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
1 to 8 PLC Splitter with SC FC LC ST Connector Type G657A Fiber Type at Affordable 19

Contact Details
Ningbo Kehao Hanxing Photoelectric Technology Co., Ltd.

Contact Person: Mr. Ren

Tel: 15267877797
