16 Core UnCut Design Midspan Port Outdoor Caja de Distribucion for Telecommunication

Large Image : 16 Core UnCut Design Midspan Port Outdoor Caja de Distribucion for Telecommunication

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	customize
Model Number:	16 cores fiber optic distribution box

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Price:	$6.90/pieces >=50 pieces
Packaging Details:	blister packing >carton box>outer carton box
Supply Ability:	400000 Piece/Pieces per Month

Contact Now

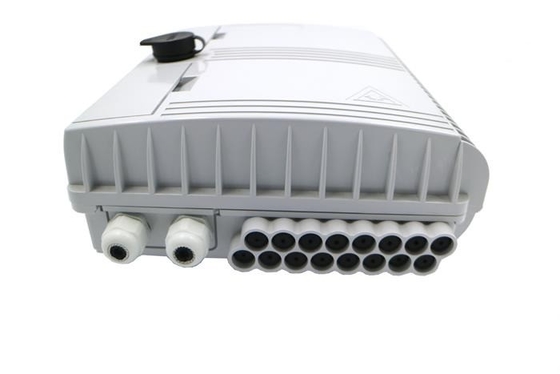

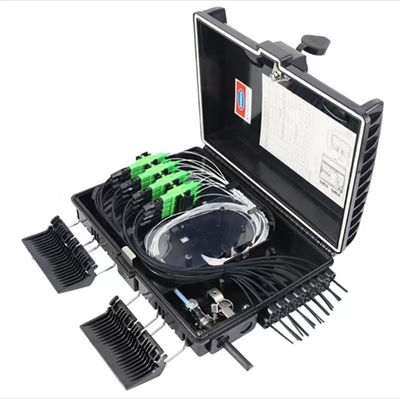

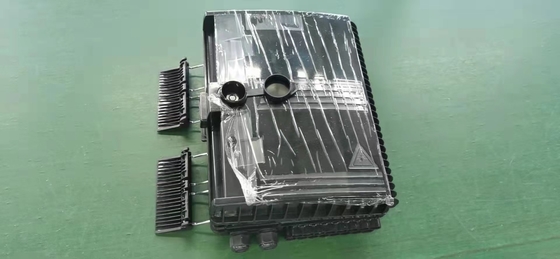

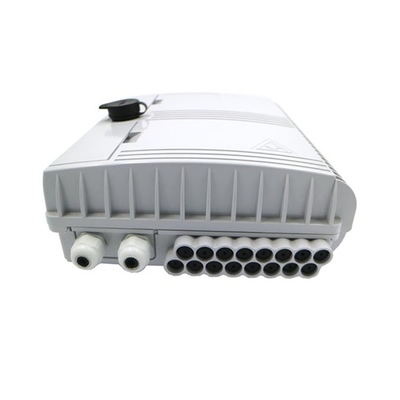

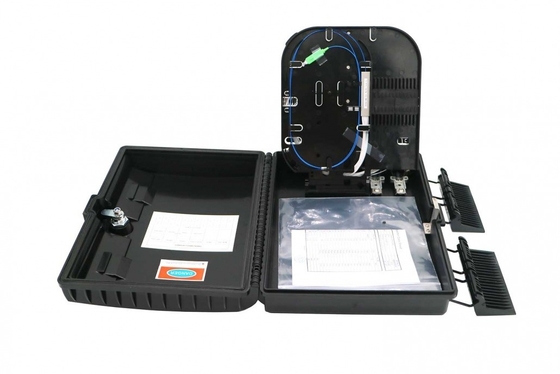

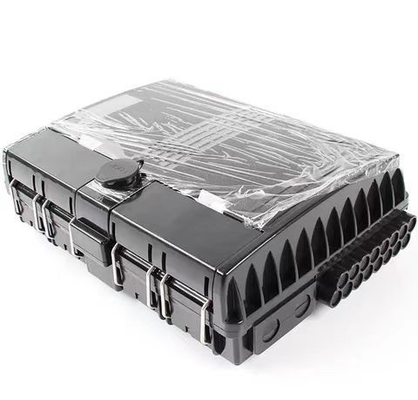

16 Core UnCut Design Midspan Port Outdoor Caja de Distribucion for Telecommunication

Description

Type:	Fiber Optic Terminal Box	Use:	FTTX ODB NAP FTTH
Warranty Time:	3 Year	Network:	Wireless Lan, Wired LAN, None, GPRS, Wifi, 4g
Product Name:	16 Cores Fiber Optic Distribution Box	Application:	Telecommunication
Material:	PP	Dimensions:	295190110mm
Function:	Distribution Fiber System (FTTH)	Color:	BLACK
Weight:	1.505kg	Max Capacity:	24 CORES
Keywords:	16 Cores Fiber Optic Distribution Box	Reinforced Adapter:	16 Pcs Of SC/UPC Or SC/APC
Port:	Ningbo Or Shanghai

Description:

This product integrates the splitting and distribution function in one distribution box. So that it can realize the splicing and
branch of the optical cable. The unique design of the box-shaped structure of this box can be used as a fiber splitting or splice box, and the 3 layers structure, easy for future expansion and maintenance. It is suitable for the cable connection of the optical communication equipment. And this product is for aerial stand-mounts FTTH drop location where drop cables are spliced to distribution cables. It can keep internal components. Away from outdoor environmental damage. Its flexible configuration supports 3 cables in and 3 cables out. Good performance is useful in harsh environment. 16 pcs of adapters can be installed, and through the adapters of the distribution box, the signal is drawn by the optical fiber jumper to realize the optical fiber distribution function. Also suitable for fiber cable and pigtails protective connection.

Features

• The closure casing is made of industrial plastic PP
• Outdoor application and good UV resistance
• Double sided drop cable outlets drop, cable can lead in at both sides, easy to deploy
• 6 cable ports entrance, 2 for feeder cable (8-20mm) and 4 for branching cable(5-16mm)
• 3 layers structure, easy for futur expansion and maintenance
• Fiber bend radius control more than 40mm.
• 180 degree access with buckled lock structure.
• Protection grade IP-65
• 16 pcs adapters for SC.
• The application on NAP in the distributed split PON architecture

Material	PP
16Max splice	16 cores
Number of Adapters	16 pcs of SC/UPC or SC/APC
Color	Black,White

Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
