Product Details:
|
| Type: | PLC Splitter | Use: | ODF, Closure, FAT And FTD, Network |
|---|---|---|---|
| Warranty Time: | 3 Year | Network: | Wireless Lan, Wired LAN, ONVIF, None, Ip, Wifi, 4g, 3G, Wiegand |

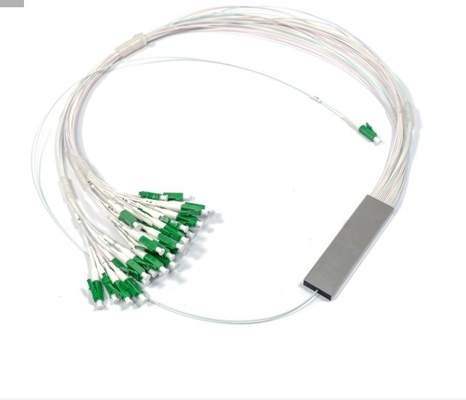

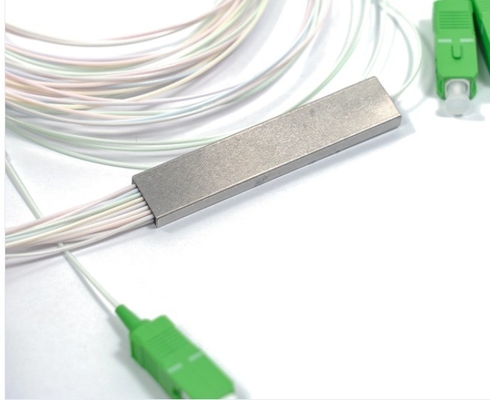

| Product Name: | Mini Type PLC Splitter | Application: | Telecommunication |
| Fiber Type: | G657A | Connector Type: | SC FC LC ST |
| Function: | Fiber Signal Transmission | Insertion Loss: | ≤10.7dB |
| Operating Wavelength (nm): | 1260~1650 | Temperature Stability (-40~85 ℃)(dB): | 0.5 |
| Directivity (dB): | ≥55 | Port: | Ningbo Or Shanghai |
Parameter | Unit | Specification (P Grade) | ||||||||||
Operation Wavelength | nm | 1260～1650 | ||||||||||
Channel Number | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | ||||||
Insertion Loss with Connector (Max) | dB | 4.1 | 7.4 | 10.5 | 13.8 | 17.1 | 20.4 | |||||
Insertion Loss without Connector (Max) | dB | 3.8 | 7.1 | 10.2 | 13.5 | 16.8 | 20.1 | |||||
Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1 | 1.5 | 2 | |||||
Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | |||||
Return Loss | dB | ≥50 | ||||||||||
Directivity | dB | ≥55 | ||||||||||
Parameter | Unit | Specification (P Grade) | ||||||||||
Operation Wavelength | nm | 1260～1650 | ||||||||||
Channel Number | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | ||||||
Insertion Loss with Connector (Max) | dB | 4.4 | 7.7 | 10.8 | 14.1 | 17.4 | 20.6 | |||||
Insertion Loss without Connector (Max) | dB | 4.1/4.3 | 7.4 | 10.5 | 13.8 | 17.1 | 20.3 | |||||
Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1 | 1.5 | 2 | |||||
Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.5 | |||||
Return Loss | dB | ≥50 | ||||||||||
Directivity | dB | ≥55 | ||||||||||
Cable Infor | ||||
Fiber type | G657A1 | |||
Pigtail cable | Bare fiber only | |||
Connector | / | |||
2xN Splitter | Only Single Chip |
