24 Cores Fiber Optic Splitter Distribution Box for Optical Splitting Requirements

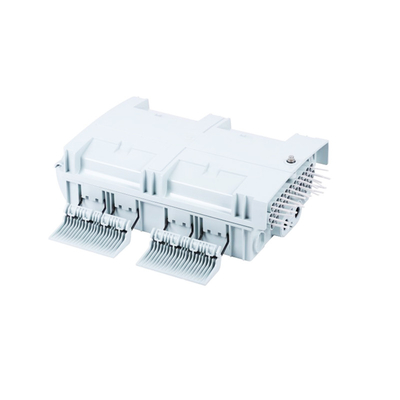

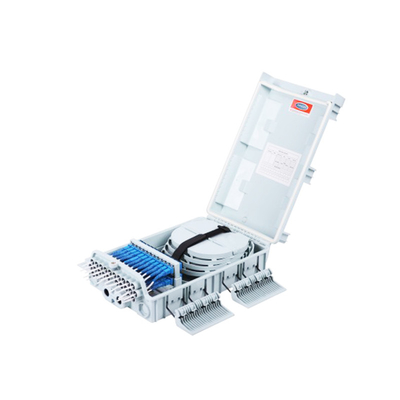

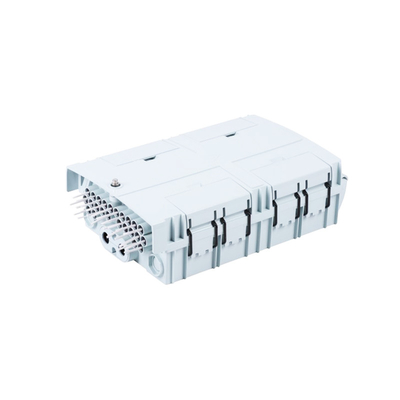

Large Image : 24 Cores Fiber Optic Splitter Distribution Box for Optical Splitting Requirements

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	customize
Certification:	Ip65
Model Number:	24 cores fiber optic distribution box

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Price:	$6.90/pieces >=50 pieces

Contact Now

24 Cores Fiber Optic Splitter Distribution Box for Optical Splitting Requirements

Description

Type:	Fiber Optic Terminal Box	Use:	FTTX ODB NAP FTTH
Warranty Time:	3 Year	Network:	Wireless Lan, GPRS, Wifi, 4g, 3G
Product Name:	24 Cores Fiber Optic Distribution Box	Application:	Telecommunication
Material:	PC+ABS	Dimensions:	345210100
Function:	Distribution Fiber System (FTTH)	Weight:	1.665kg
Max Capacity:	Splice 96 Fibers, Splitter 3pcs Of 1x8(SC) Steel Tube Type	Keywords:	24 Cores Fiber Optic Distribution Box
Reinforced Adapter:	24pcs SC/UPC Or SC/APC

Description:

Applications

* Optical LAN & WAN & CATV

* FTTH project & FTTX Deployments

* Broadband High-bit rate data transmission

* Active device terminations

* Testing instruments

* Optical fiber communication networks

* PON Networks

* Optical Signal Distribution

Features

• Water-proof design with IP-68 Protection level.
• Integrated with flap-up splice trays and adaptor holder.
• Maximum 96F splice capacity, stainless anti-rust bolts and nuts.
• Easy for maintenance and expansion.
• Fiber bend radius control more than 40mm.
• 180 degree access with buckled lock structure.
• 24 pcs of mechanical ports for 3-7mm drop cable.
• 1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 mechanicals glands for distribution cable (8-16.5mm).

Specification

Max Capacity	Splice 96 Fibers(4 trays x 24F) Splitter 3pcs of 1x8(SC) Steel tube type
Reinforced Adaptor	24pcs SC/UPC or SC/APC
Material	ABS+PC
Dimension L×W×H(mm)	345×210×100
Weight (g)	1665
Color	Grey

Product Description

Main Products

Mini Type PLC Splitter

Cassette Type PLC Splitter

Rack Mounted Type PLC Splitter

Insertion Type PLC Splitter

Tray AssemblyType PLC Splitter

Other goods

Company Profile

Company Profile

Ningbo Kehao Hanxing Photoelectric Technology Co., Ltd was founded in 2002, which has been focusing on the field of optical and electrical communications for 20 years.
As the founders, the couple Chen Bo and Reng Chunfei started their own business at the beginning and now the team has 500 members.

1.Factory Direct, Best Price
At the same price, we offer the highest quality products. 2.Delivery Time: 7-10 Days
The company has a large number of stable employees over ten years. To ensure that the delivery time can be guaranteed at any time.
3.High Quality:
IQC-PQC-FQC-OQC.100% qualified. 4.Satisfactory Service:
Special team responsible for after-sales service,Includes installation instructions and technical support.Response within 1
hour,solution within 8 hours, after -sale service

Production Workshop

Product packaging

Why Choose Us

FAQ

Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
