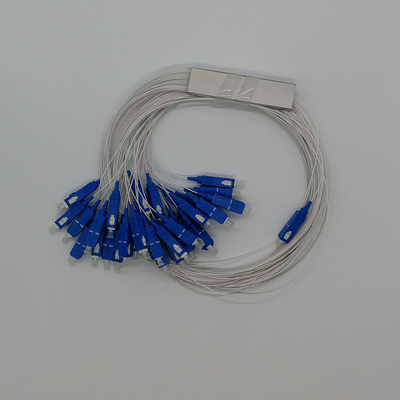

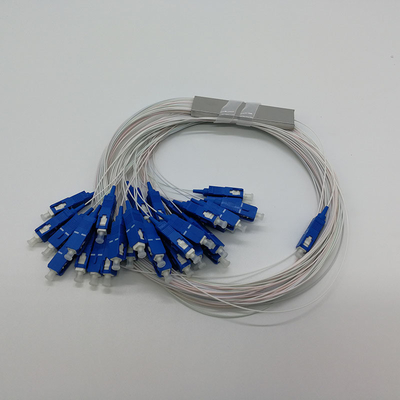

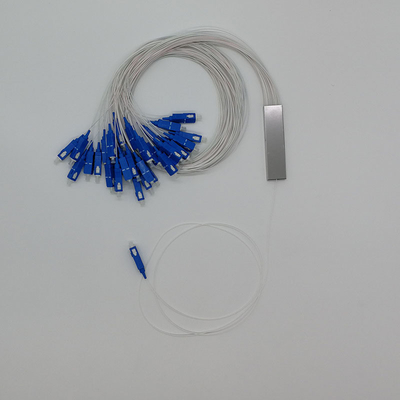

Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64

Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64

Large Image :  Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64

Product Details:
Place of Origin: Zhejiang, China
Brand Name: customize
Model Number: plc splitter
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $3.50/pieces >=100 pieces
Contact Now

Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64

Description
Type: PLC Splitter Use: ODF, Closure, FAT And FTD, Network
Warranty Time: 3 Year Network: Bluetooth, Wired LAN, None, GPRS, Wifi, 4g, 3G
Product Name: Plc Splitter Application: Telecommunication
Fiber Type: G657A Connector Type: SC FC LC ST
Function: Fiber Signal Transmission Insertion Loss: ≤10.7dB
Operating Wavelength (nm): 1260~1650 Temperature Stability (-40~85 ℃)(dB): 0.5
Directivity (dB): ≥55

Product Description
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 0
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 1
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Kehao Hanxing provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. The following are our main PLC types:
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 2

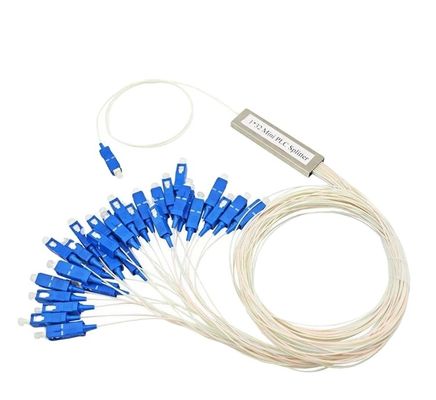

Mini Type PLC Splitter
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 3
Cassette Type PLC Splitter
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 4
Rack Mounted Type PLC Splitter
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 5
Insertion Type PLC Splitter
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 6
Tray AssemblyType PLC Splitter
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 7
Other goods
Specification
Parameters
1×2
1×4
1×8
1×16
1×32
1×64
Operating Wavelength (nm)
1260~1650
Fiber Type
G657 or customized
Insertion Loss (dB)
≤4.1
≤7.4
≤10.5
≤13.8
≤17.1
≤20.4
Loss Uniformity (dB)
≤0.8
≤0.8
≤0.8
≤1.0
≤1.5
≤2.0
Return Loss (dB)
≥50
≥50
≥50
≥50
≥50
≥50
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.3
0.4
Directivity (dB)
≥55
≥55
≥55
≥55
≥55
≥55
Temperature Stability (-40~85 ℃)(dB)
0.5
0.5
0.5
0.5
0.5
0.5
Operating Temperature (℃)
-40~85
Storage Temperature (℃)
-40~85
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 8
Company Profile
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 9
Company Profile
Ningbo Kehao Hanxing Photoelectric Technology Co., Ltd was founded in 2002, which has been focusing on the field of optical and electrical communications for 20 years.
As the founders, the couple Chen Bo and Reng Chunfei started their own business at the beginning and now the team has 500 members.
1.Factory Direct, Best Price
At the same price, we offer the highest quality products. 2.Delivery Time: 7-10 Days
The company has a large number of stable employees over ten years. To ensure that the delivery time can be guaranteed at any time.
3.High Quality:
IQC-PQC-FQC-OQC.100% qualified. 4.Satisfactory Service:
Special team responsible for after-sales service,Includes installation instructions and technical support.Response within 1
hour,solution within 8 hours, after -sale service
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 10
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 11
Product packaging
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 12
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 13
Production Workshop
Why Choose Us
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 14
Certificate
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 15
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 16
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 17
Telecommunication G657A Fiber PLC Splitter with SC Connectors 1*2 1*4 1*8 1*16 1*32 1*64 18
FAQ
Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
