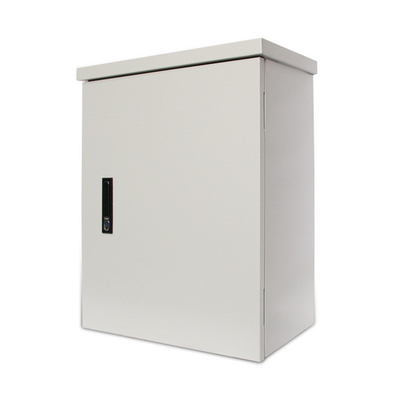

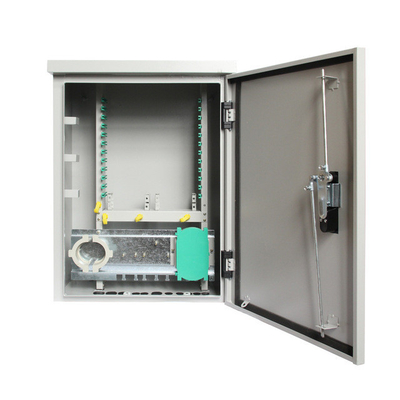

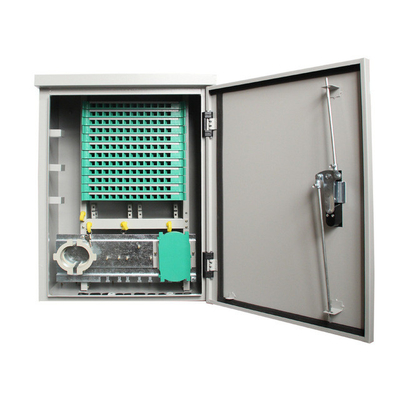

Telecommunication 144 cores Jumper-free Fiber Optic outdoor cabinet with PLC splitter and pigtail

Large Image : Telecommunication 144 cores Jumper-free Fiber Optic outdoor cabinet with PLC splitter and pigtail

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	customize
Certification:	Ip65
Model Number:	144 cores fiber optic cabinet

Payment & Shipping Terms:

Price:	$20.00/pieces >=1 pieces
Packaging Details:	blister packing >carton box>outer carton box
Supply Ability:	400000 Piece/Pieces per Month

Contact Now

Telecommunication 144 cores Jumper-free Fiber Optic outdoor cabinet with PLC splitter and pigtail

Description

Type:	Fiber Optic Terminal Box	Use:	FTTX ODB NAP FTTH
Warranty Time:	3 Year	Network:	4g
Product Name:	144 Cores Fiber Optic Cabinet	Application:	Telecommunication
Material:	Cold-rolled Steel/Stainless Steel/SMC	Dimensions:	1030550310mm
Function:	Distribution Fiber System (FTTH)	Distribution Capacity:	Up To 576 Cores
Size:	Standard/Customized	Keywords:	144 Cores Fiber Optic Cabinet
Reinforced Adapter:	FC/SC/LC	Port:	Ningbo Or Shanghai

Description:

Specification:
. PLC Splitter Box: Optional of 1*8/1*N
. Distribution capacity: Up to 576 Cores
. Dimensions: Standard/Customized
. Material: Cold-rolled Steel/Stainless Steel/SMC
. Design Style: Front and Front/Back Access
. Adapter Type: FC/SC/LC
. Number of Cable Entries & Exits: Customized
. Color: RAL7035/Customized

Features:
. Maximum accommodate 48 pieces of 1*8/1*N PLC splitter box
. Max. 48 pieces of 12 cores fiber pigtail tray with adapter for backbone and distribution cable
. Protection level reaches IP65
. Modular design, easy installation and removal
. Independent storage and splice area, provides flexible fiber cable management
. Have enough place for 2.0mm 3M pigtail
. Reliable sealing and locking make it waterproof and rust-proof ,mainly used outdoor
. Optional of SMC, stainless steel or cold-rolled steel materials, with surface powder coating
. Preset fiber pigtails installed for rapid deployment

Specification

Model	Oversize	Max Capacity
KX-96	1030550310mm	96 Cores
KX-144	1030550310mm	144 Cores
KX-288	1450750360mm	288 Cores
KX-576	1450750540mm	576 Cores
KX-1152	11501450620mm	1152 Cores

Product Description

Main Products

Mini Type PLC Splitter

Cassette Type PLC Splitter

Rack Mounted Type PLC Splitter

Insertion Type PLC Splitter

Tray AssemblyType PLC Splitter

Other goods

Company Profile

Company Profile

Ningbo Kehao Hanxing Photoelectric Technology Co., Ltd was founded in 2002, which has been focusing on the field of optical and electrical communications for 20 years.
As the founders, the couple Chen Bo and Reng Chunfei started their own business at the beginning and now the team has 500 members.

1.Factory Direct, Best Price
At the same price, we offer the highest quality products. 2.Delivery Time: 7-10 Days
The company has a large number of stable employees over ten years. To ensure that the delivery time can be guaranteed at any time.
3.High Quality:
IQC-PQC-FQC-OQC.100% qualified. 4.Satisfactory Service:
Special team responsible for after-sales service,Includes installation instructions and technical support.Response within 1
hour,solution within 8 hours, after -sale service

Production Workshop

Product packaging

Why Choose Us

FAQ

Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
